Description of Connectors

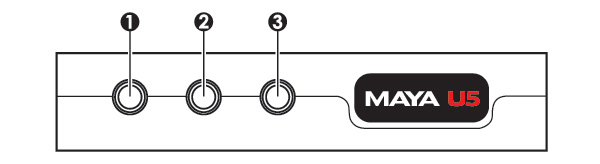

• Front Part
• ① Line In : This is Input terminal to get input of stereo signal from audio equipment like CD player or MP3 player mixer.
  ② Mic In : This is mono signal input terminal from microphone.
  ③ Headphone output Terminal : This is the terminal to be used connecting with headphone.

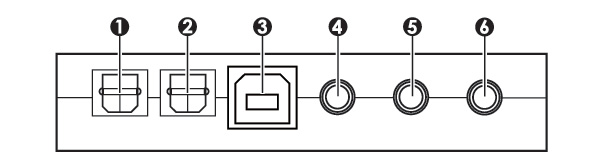

• Rear Part
• ① Digital In : Input terminal of digital signal (Only PCM type audio stereo signal is recognized. DTS, AC3 5.1 channel signal is not recognized)
  ② Digital Out : Output terminal of digital signal. (You need to set up PassThrough with the video software when you make AC3,DTS 5.1 channel digital signal output. You can get more information for set-up on the FAQ page of our website.)
  ③ USB Connection Terminal : USB connection terminal. (It is directly connected to the USB in the main equipment for stable power supply.)
  ④ Front : Output terminal of front speaker.
  ⑤ C/W : Output terminal in the central speaker and woofer speaker.
  ⑥ REAR : Output terminal of rear speaker.


Hook-up Application
